PA connector (PA family, High box type)

All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> PA connector (PA family, High box type)

Series Description

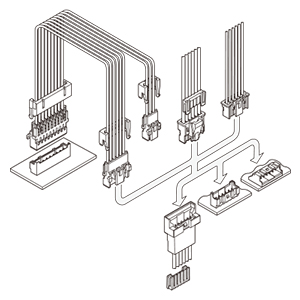

This is PA connector high-box type and also mates with PAF connector (socket) of insulation displacement type.

To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.

Pitch

2mm

Current Rating

3 A (AWG #22)

Voltage Rating

250V (標準タイプ)
100V (リテーナ対応タイプ)

Lock	Outer lock (Secure lock), Center lock (Secure lock)

Mating direction

Top entry

Others

Suitable for potting process

PC board mounting

DIP (Through-hole)

Retainer

Standard
