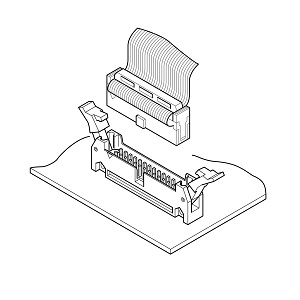

RA connector (IDC type, Tin-plated)

All Products >> Product Category >> Ribbon Cable Connectors >Product Series >> RA connector (IDC type, Tin-plated)

Series Description

This connector for 1.27 mm ribbon cable connections, adopting a twin U-slot structure contact with a highly reliable design for the IDC part.

To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.

Pitch

2.54mm

Current Rating

1 A (AWG #28)

Voltage Rating

300V

Connection variations (Compatibility

Compatible crimp connector available

Lock	Outer lock (Secure lock)

Mating assist

Lock lever to reduce insertion force

Mating direction

Top entry type, Side entry type

Others

Mating

PC board mounting

DIP (Through-hole)

Standard

UL, CSA, MIL

Wire drawer

Side

Wiring type

Insulation displacement connectors
