All Products >> Product Category >> Wire-to-Wire Connectors >Product Series >> VL connector HIGH CURRENT TYPE (Wire-to-Wire)

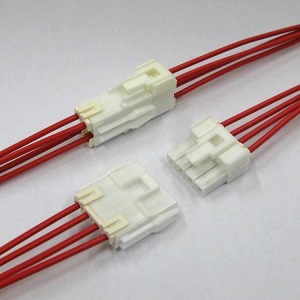

Close up image of VL connector HIGH CURRENT TYPE (Wire-to-Wire)

Product Photo

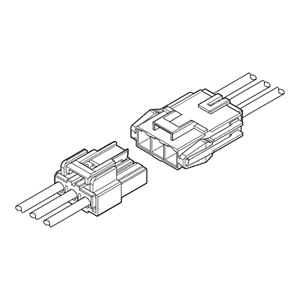

Schematic photo of VL connector HIGH CURRENT TYPE (Wire-to-Wire)

Schematic

Series Description

This VL connector is 6.2 mm pitch wire-to-wire and wire-to-board connector, designed for large current.
The connector suitable for the large electric current has been realized by using highly-conducting material, so that the connection of large current circuit enables.

Catalog

To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.

Pitch 6.2mm
Current Rating 23 A (1,2 circuits,AWG #12)
Voltage Rating 600V
Connection variations (Compatibility Wire-to-board type available
Lock Inner lock (Secure lock), Outer lock (Secure lock), Center lock (Secure lock)
Others Crimping two wires at the same time
Panel mounting Panel lock
Retainer Retainer
Standard UL, CSA, TÜV, Electrical Appliance and Material Safety Law in Japan.
Wiring type Crimp style
