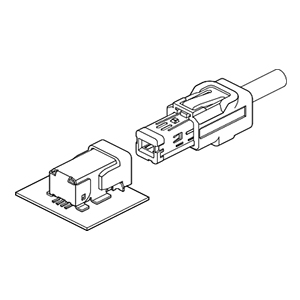

Schematic
Series Description
ASU is a compact, high-speed transmission connector ideal for in-vehicle equipment such as Electronic Toll Collection Systems (ETC), navigation systems and Human Machine Interface (HMI).
Designed for SMT termination.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch |
| Current Rating | 1 A (AWG #28) |
| Voltage Rating | 30V |
| Application | Human Machine Interface (HMI), Antenna communication equipment (GPS, etc) |
| Lock | Inner lock (Secure lock) |
| Mating assist | Keying |
| Mating direction | Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving |
| Retainer | Retainer |
| Sub category | Wire-to-Board |
| Transmission/Electromagnetic characteristics | High-speed transmission, Noise measure |
