It is difficult to identify any JST connector from the markings. It is suggested that you take a digital photo and contact us here for identification purposes.
Crimp specifications for many of the common crimp contacts and terminals are now available on our website on the following menu selection. Application Tools and Specifications
When selecting this link, choose the “Crimp Style Connectors”. From there, enter the exact contact part number or choose it from the alphabetical scroll list [Select Model Number (from list):] provided.
The results will provide the user with the tooling options as well as the crimp specifications at the bottom of the page.
If further information is required, or an item is not listed, please contact us here for more information.
At this time a cross reference feature is not available on the jst.com website. If you require a cross to JST from a competitive part number, please contact us here.
Enacted in January 2004, the (V) indicates a configuration change made to the top-entry headers to step-up flowability of the molding process and improve productivity and stability. The change does not affect performance of the connector. Below are schematics showing the revision.
Without the (V) suffix
With the (V) suffix
The ECCN for JST Corporation and JST Sales America, Inc. is EAR99.
What is the difference between B( )B-EH-A and B( )B-EH? [replace ( ) with the applicable number of circuits]

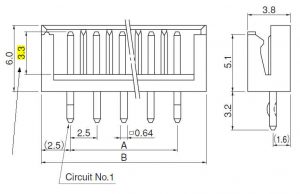

The difference is the post length. Those with the “-A” suffix have a post extension length of 3.3mm (standard). Without the “-A” suffix, the post extension length is 4.0mm (normal length for the side-entry headers).
Also available and identified as model BxxB-EH is a top entry type having a post extension length of 4.0mm
More details can be found at the following URL: https://jst.com/products/crimp-style-connectors-wire-to-board-type/eh-connector/
Please contact us here if you have any questions.
The FDZ series incorporates a sliding lock mechanism (slider) to lock the applicable FPC into the connector. Prior to the year 2000, the FDZ series was packaged and shipped with the slider in the open position.
Shipping in this method may cause the slider to break and / or damage the connector.
It was decided to package and ship the slider in the semi-locked position to help prevent breakage during packaging and shipping processes. To distinguish the new method from the old for first in, first out (FIFO) inventory control, an (S) was added to the suffix of the applicable parts.
Since 2000, only the parts with the incorporated (S) in the part number can be ordered. An example of the part number would be 13FDZ-BT (S)(LF)(SN).
The part is no longer provided with the slider in the open position from the factory [without the (S)].
If you have additional questions please contact us here.
The difference is the material to conform to RoHS compliance.
The older SM1 / RSM1 are of 46 Nylon.
The compliant SM2 / RSM2 are of Glass-filled PA6T Nylon. These better withstand the higher temperatures required for the lead free solder reflow process.
For more information please contact us here.
The (P) or (PP) suffixed to the part number is an internal reference for JST. The (P) or (PP) indicates a change made to the inner and outer package labeling. It does not affect the physical part and it will not be shown on the product specifications.
When purchasing some JST part numbers, you may find added characters and letters added to the prefix or the suffix of the part number as designated by our factories and sales offices.
Prefixed characters indicate the factory of origin while suffixed characters may indicate RoHS compliance and/or internal JST changes (i.e. change in raw material supplier). Any internal changes denoted in the suffix do not affect part fit, form or function.
The following common prefixed characters would indicate the factory / country of origin. If there is no character prefixed to the part number, the country of origin is Japan:
(G) = Shanghai, China
(W) = Indonesia
(C) = Waukegan, Illinois, USA
(Q) = Korea
(D) = Malaysia
(B) = Belgium
The following suffixed characters would indicate the part number is RoHS compliant. These typically apply to PCB mounted headers. The majority of housings and contacts are RoHS compliant as is and do not require these added characters. Please contact your JST sales representative to confirm RoHS compliance if you are uncertain:
(LF) = Lead-free. The finish would be 98% tin and 2% copper.
(LF)(SN) = Lead-free with a 100% pure tin finish [SN is the Periodic Table of Elements symbol for tin].
(LF)(AU) = Lead-free with a 100% gold finish [AU is the Periodic Table of Elements symbol for gold]. The gold finish would have a nickel underplate.
Other characters, such as (S), (N), (M), etc., would indicate modifications to the part, changes in the raw material supplier at the factory, or packaging. These characters differ from part to part and series to series. For details on such characters, please contact your JST sales representative.
The majority of JST through-hole type header wafer materials cannot withstand the temperatures required for reflow soldering (pin-n-paste). The through-hole headers are designed for wave or dip soldering methods.
Please contact us here if more information is required.
Used on surface mount, through-hole headers and board-in connectors, a “boss” is a peg on the bottom of a header that helps polarize and situate the product onto the PCB.
For polarization, the boss allows the user to orient the product onto the PCB in only one direction. They are also used to help steady surface mount headers before subjecting them to IR reflow.
An extra hole is required to be drilled /punched into the PCB when incorporating items with bosses though the boss typically will not penetrate completely through the PCB like a through-hole solder tail would.
The recommended storage temperature range is +5C to +35C. The recommended maximum storage humidity is 60%.

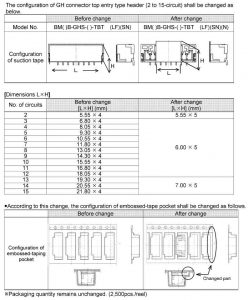

Configuration of the GH connector top entry type suction tape shall be changed and unified starting in May, 2007 in order to improve workability of peeling suction tape.
According to this change, “(N)” shall be suffixed to conventional model No. as identification model No.

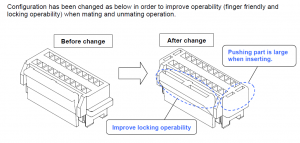

Modified in 2007, the (F) indicates the housing as a “finger friendly” style to improve handling during mating and unmating operations. Please refer to the following diagram:
Please contact us here if you need further information.
Certain connectors are offered with gold plating depending on the series and / or the JST part number. Most are custom per customer / request. Contact us here for details of any JST part number.
The (NSA) indicates a modification made to the guide ribs of the receptacle to help prevent breakage during accidental, slantwise mating cycles instead of the proper straight mating method as well as the inclusion of a Nickel stripe to help prevent solder from traveling up the contact during the reflow process. For more information contact us here for a handling manual of the series.
The (S) indicates a modification made to the guide ribs of the receptacle to help prevent breakage during accidental, slantwise mating cycles instead of the proper straight mating method. For more information contact us here for a handling manual of the series.
The (S) indicates a modification made to the guide ribs of the receptacle to help prevent breakage during accidental, slantwise mating cycles instead of the proper straight mating method. For more information please contact us here for a handling manual of the series.
The Distributor Stock Check feature of our website (Distributor Stock Check) will allow you to check stock and obtain a quote through one of our distributors. If you are unable to locate the JST part required, please contact our sales support at 800-947-1110 for further assistance.
If you are an authorized JST distributor and you are having difficulty logging in on the following link: Distributor Access
Please contact the distribution sales office at 203-469-4687 to have the issue resolved.
Our website at the following link is continually updated with the latest distributor information. Select the link below then choose your country and state. A list of reps and distributors will be shown.
Rep or Distributor Search
The new Internet Shop menu selection allows the user to place orders with our factories direct through PayPal or wire transfer payment methods. For issues regarding your orders, please refer to the email link at the top of the Internet Shop home page.
The stacking height is 15.1mm (0.59″)
At present, the JWPF contacts are not available in gold plating.
The difference between SWPT-001T-P025 and SWPT-001T-025 is the base material. With the “P” it is a Phosphor Bronze material. Without the “P” it is a Brass material. The standard, better material is Phosphor Bronze.
What is the difference between ##KR-6S-P and ##KR-6H-P (replace ## with the number of circuits)? The difference is the color; the “S” indicates white and the “H” indicates gray. From, fit and function they are otherwise the same and share the same termination tooling.
What is the difference between SHF-001T-0.8BS and SHF-001T-0.8SS?
The difference is the base material. The contact suffixed with “BS” is the standard Phosphor Bronze material. The “SS” indicates Brass material.
Example part numbers:
The difference is the raw material resin used. Without the “F”, it is glass-filled PBT. With the “F”, it is PA66.
Those WITHOUT the “F” added are discontinued.
Only those with the “F” are now promoted due to quality issue with those without the “F”.
Please contact us here if you require further information.
The following are the recommended drill hole sizes for the most common PCB materials:
JST Part Numbers
Replace “*” with the applicable number of circuits (2 ~ 16).
Recommend PCB hole size (all dimensions are in mm):
Ø0.70 ~ 0.75 for 2 circuits
Ø0.75 ~ 0.80 for 3 ~ 16 circuits
Note: Hole size of the paper-based epoxy PC board and glass-based epoxy resin PC board
(without through hole) is the value set for the drill hole (NC processing).
Ø0.80 ~ 0.85 for 2 circuits
Ø0.85 ~ 0.90 for 3 ~ 16 circuits
Note: Hole size of glass-based epoxy PC board (with through-hole) is the finished dimension
after plating through-hole.
If further information is required please contact your local authorized JST sales rep which can be found at the following URL:
Yes. There is a contact for the PH series that will work for 22AWG wire. The part number is SPH-001T-P0.5S. It has an AWG range of 26 to 22 with an insulation outer diameter range of 0.9 to 1.5mm. For 26 and 24 AWG, JST suggests using UL1007 wire. For 22AWG, we suggest UL1061 or UL1571.
What is the difference between B( )B-PH-K-S and B( )B-PH-KL? [replace ( ) with the applicable number of circuits]
B( )B-PH-K-S is the standard, through-hole header in a natural white color. B( )B-PH-KL is a low insertion force type header in gray color.
Refer to the following URL for more details: https://jst.com/products/crimp-style-connectors-wire-to-board-type/ph-connector/
What is the difference between SPH-002T-P0.5S and SPH-002T-P0.5L?
The difference is the insertion force. SPH-002T-P0.5S is the standard contact; SPH-002T-P0.5L is a low insertion force type contact.
These contacts do not share the same tooling.
To order the top-entry, surface mount header of the PH series with removable suction cap (Kapton tape) for ease of pick-and-place vacuum nozzles, the part number would include an extra “T” after the packaging indicator.
Part number B2B-PH-SM4-TB (LF)(SN) does not include the suction cap.
Part number B2B-PH-SM4-TBT (LF)(SN) includes the suction cap.
JST cannot rework product you have already purchased without the suction cap.
For additional information you may contact us here.
At this time, JST does not offer a wire-to-wire mate for the PHD series. It is deigned for wire-to-board applications only.
What is the difference between B( )B-PHDSS and B( )B-PHDSS-B? As well as the side-entry version, S( )B-PHDSS and S( )B-PHDSS-B?
*: Replace ( ) with the applicable number of circuits.
The difference is the wafer material.
The suffixed “-B” on both the top and side-entry headers indicates the material is 66 Nylon.
Those without the “-B” suffix are glass-filled Nylon.
For more information contact us here.
The (T) indicates the packaging.
(T): Tray packaging
The PND series headers are packaged in trays to help prevent damage to the solder tails and housing during shipping and handling and for use in some automated PCB placement equipment.
Example part number: B30B-PNDZS-1 (T)(LF)(SN)
For additional information please contact us here.
The difference between part number B**B-PNISK-1A(LF)(SN)(F) and the same without the (F) suffix is the wafer material. It is the part with the (F) that can only be purchased. It is the same glass-filled PA66, UL94V-0 material as called out on our data sheet online: http://www.jst-mfg.com/product/pdf/eng/ePNI.pdf
Replace ** with the applicable number of circuits.
Detailed Product Specifications are not available for download directly from the JST websites. If you require more detailed specifications than what is currently offered on our websites off of the available datasheets, please contact us here for more information.
As an internal JST reference to control FIFO inventory, the (N) was applied to indicate a change in the quantity per reel from 7,500 pieces to 8,500 pieces.
The data sheets, product specifications and drawings will not indicate this internal reference though it is likely to be shown on the package labeling, packing lists and invoices to customers who purchase this item.
Please contact us here if you have further questions.
Non-RoHS parts are no longer in production.
Samples may be ordered through our website at the following link:
What is the difference between SSH-003T-P0.2 and MINI-SSH-003T-P0.2?
The difference is the packaging. MINI-SSH-003T-P0.2 is packaged on a mini-reel of 1,000 pieces for use with the mini-reel hand tool WC-SH2832. Part number SSH-003T-P0.2 is packaged on the full size reel of 23,000 pieces MOQ for use on semi-auto bench presses.
View SH Connector page.
In the subject part numbers, replace the ( ) with the applicable number of circuits.

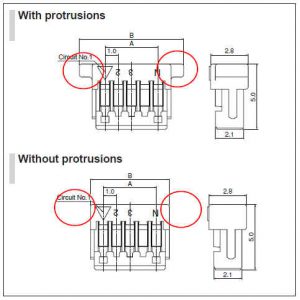

The difference is protrusions on the sides of the housings to make handling them easier. The SHR-( )V-S is without the protrusions and SHR-( )V-S-B is with the protrusions. Please see the image below for more details.
The complete data sheet can be down-loaded from the JST website at the following URL:
Please contact us here for any further questions or if additional information is required.
JST does offer a flash gold-plated version of part number SSH-003T-P0.2-H. The part number is SSH-003GA-P0.2-H. For more information you may contact us here.

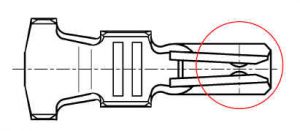

Contact with the “-H” suffix…

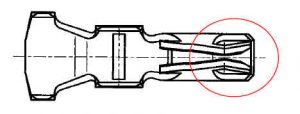

Contact without the “-H” suffix…
Part number SSH-003T-P0.2-H is a newer version and is called a “high-pressure contact type” compared to the older SSH-003T-P0.2. The contact point of the contact was modified for a more assured connection and to help prevent the contact from warping when mating with the header posts.
Both contacts share the same application crimp tooling for terminating to the applicable wire. For more information, please visit www.jst.com.
At this time, the SH series is only offered in its current configuration of wire-to-board. A wire-to-wire application option is not available.
Replace ( ) with the applicable number of circuits.
The “C” indicates the inclusion of a removable suction cap used for the ease of placement using pick and place equipment vacuum nozzles. Unlike Kapton tape applied to many of our SMT products, the “C” on this series is a hard plastic cap.
For details or further information please contact us here.
A housing for this terminal is not supplied by JST. It is left to the decision of the end user to use a housing with this terminal.
The “P” indicates the base material. With the “P” the material is Phosphor Bronze. Without the “P” the material is Brass.
JST does not typically offer our strip terminals and chain terminals in loose piece (bulk) packaging. The reeled terminals are designed for large volume semi-automatic and fully-automatic wire termination equipment.
Hand tools are offered for loose contacts but most require the user to cut the terminal or contact off of the carrier strip before placing it into the hand tool for crimping.
Some of the JST authorized distributors do have the capabilities of removing the contacts from the carrier strip for those who wish to purchase loose contacts. Our network of authorized distributors can be found on our website at the following URL:
For some of the connector series’, the top-entry surface mount headers require a suction cap for pick-n-place equipment vacuum nozzles. As such, those for which it applies would have an extra “T” suffix to the part number. For example, to have part number BM06B-SRSS-TB include the suction cap, it would be ordered as BM06B-SRSS-TBT. The same would apply to most top-entry headers with a “-TF” suffix. The SHD series is the exception whereas it uses a hard plastic cap thereby the suffix would be “-TFC”. For more information please contact us here.
Will the WC-240 hand tool work with SPHD-002T-P0.5 as well as SPH-002T-P0.5S?
No. The subject hand tool will not work with SPHD-002T-P0.5.
Much of our tooling is available for lease. For details, please call our Service Engineering department at 800-947-1110.
Tooling information can be found on our website under Application Tooling (Application Tools & Specifications). Choose the application of your terminal or connector (Crimp Style Connectors [these are crimp and poke types], Insulation Displacement Connectors [IDC / IDT type connectors, or Solderless Terminal & Splices [such as ring or spade lugs] then enter the exact part number or choose the part number from the scroll lists provided. All the available tooling options and part numbers available will be shown. Contact our sales force at 800-947-1110 for pricing and availability information.

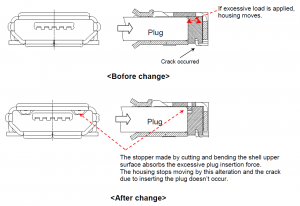

The difference is a revision to the shape by adding a stopper in order to reduce the occurrence of cracking in the colder tails when excessive force is applied by the user from the mating plug.
If further information is required please contact us here: Connector Technical Assistance
How do I order B3P-VH with the center post (pin #2) removed / omitted?
The part number would be B2P3-VH.
The RoHS compliant version adds (LF)(SN) to the part number suffix.
Does JST offer the VH headers with posts removed or omitted?
Yes, JST does offer the VH headers with posts omitted. As they are custom for each situation, please contact your JST Regional Sales Manager for more information and ordering details.
The strip length is 3.0mm to 3.5mm (0.118″ to 0.138″).
The difference is the material. With the “P it is a Phosphor Bronze material and is the standard to use. Without the “P” the material is Brass.
The parts without the “N” incorporated in the part number may emit an unpleasant odor. In response to customer requests, the parts with the “N” use a raw material resin grade for the wafer material that incorporates countermeasures against the odor.
Without “N” part numbers in which an unpleasant odor may be present:
B( )B-XASK-1 (LF)(SN)
B( )B-XASK-1-A (LF)(SN)
With “N” part numbers that incorporate countermeasure against an odor:
B( )B-XASK-1N (LF)(SN)
B( )B-XASK-1N-A (LF)(SN)
Replace ( ) with the applicable number of circuits for the series.
(LF)(SN) is the RoHS compliant identifier.
Without “A” is without a locating / polarizing boss.
With “A” is with a locating / polarizing boss.
For more information or additional questions, please contact your local JST sales rep (Rep or Distributor Search) or contact us here.
The difference is the base material.
SXH-001T-0.6 is made of Brass
SXH-001T-P0.6 is made of Phosphor Bronze (standard)
Phosphor Bronze contact retain their shape better than Brass contacts.
In the part number, replace ( ) with the applicable number of circuits/positions.
The difference is the solder tail extension from the back edge of the header wall. Please refer to following diagram from the website data sheet.

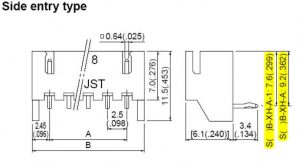

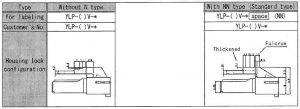

Enacted in 1997, the (NN) indicates a slight modification made to the locking mechanism of the YLP housings as shown in the basic diagram below.
The (NN) will not be displayed on the data sheets or product specifications. Please contact us here if you have further technical questions.
The ordering part number would be B**B-ZR-SM4-TFT (LF)(SN). Where “**” is replace with the applicable number of circuits.
For additional questions please contact us here: Connector Technical Assistance
The difference is the housing / wafer material…
SM3 is made of 46 Nylon glass-filled
SM4 is made of PA 6T Nylon glass-filled and is the RoHS compliant version.
The SM4 is better than SM3 for the higher temperatures required for the lead-free solder reflow process.
What does the “-P” suffix indicate on part number ( )ZR-8M-P? [replace ( ) with the applicable number of circuits]
The “-P” indicates pre-tin plating and thus makes the IDC connector RoHS compliant.
The Guntersville Assembly Manufacturing (GAM) division of JST is a full-service
cable and harness assembly operation. By using the latest
technology and exclusive equipment, we are able to create cutting-edge
custom cable assemblies out of JST connectors.
North American Headquarters
