All Products >> Product Category >> Automotive Connectors >Product Series >> HVM connector (Tin-plated)
Product Photo

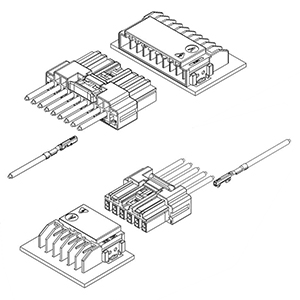

Schematic
Series Description
Developed in pursuit of withstanding high voltage, miniaturization and low profile as surface mounting type connector for automotive. To realize the withstanding voltage and miniaturization by flange structure and pitch 3.5/ 4.0 mm design.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch |
| Current Rating | 5 A |
| Voltage Rating | 1,250V (6極) 1,000V (10極) |
| Lock | Inner lock (Secure lock) |
| Mating assist | CPA (Connector Position Assurance), Keying |
| Mating direction | Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Retainer | Retainer |
| Sub category | Wire-to-Board |
