All Products >> Product Category >> Automotive Connectors >Product Series >> MEC connector (Gold-plated)

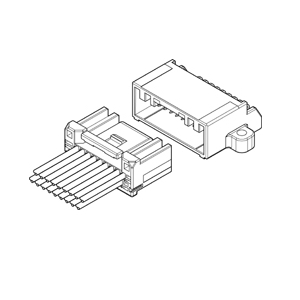

Product Photo
Schematic
Series Description
Developed in pursuit of miniaturization and low profile connector for automotive.
0.50 terminal with 2.0 mm pitch realized miniaturization.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 3 A (0.3 mm2) |
| Voltage Rating |
| Lock | Inner lock (Secure lock) |
| Mating assist | Keying |
| Mating direction | Side entry |
| PC board mounting | DIP (Through-hole), SMT, Screw fastening |
| Qualitative features | Small and space saving, Low profile |
| Retainer | Retainer |
| Sub category | Wire-to-Board |
| Terminal size | 0.5 terminal |
