Series Description

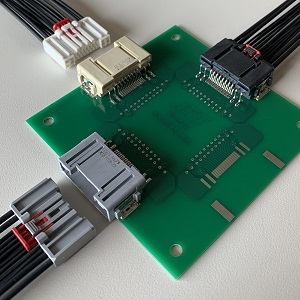

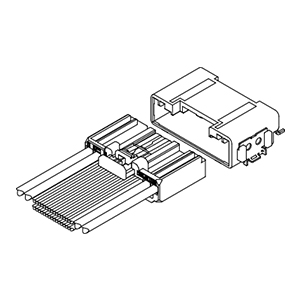

Miniaturized 0.5 mm, 1.2 mm Hybrid SMT Connector System for automotive applications.

To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.

Pitch

Current Rating

5 A (0.5 terminal,0.5 mm²)
14 A (1.2 terminal,0.75 mm²),19 A (1.2 terminal,1.5 mm²)

Voltage Rating

Array (Insertion part)

Dual-row staggered

Hybrid

Hybrid (Power supply and Signal)

Lock	Inner lock (Secure lock)

Mating assist

CPA (Connector Position Assurance), Keying

Mating direction

Side entry

PC board mounting

SMT

Qualitative features

Low profile, Small and space saving

Retainer

TPA (Terminal Position Assurance)

Standard

LV214, USCAR

Sub category

Wire-to-Board
