All Products >> Product Category >> Automotive Connectors >Product Series >> ULH connector

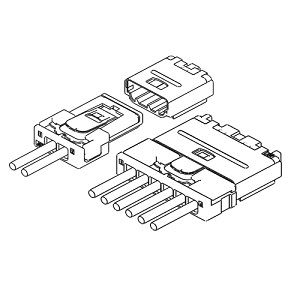

Product Photo
Schematic
Series Description
This SMT connector that achieves the worlds smallest class connector height of 3.5 mm as a crimped specification while having performance that meets the in-vehicle standards USCAR-2 and LV214.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 5 A |
| Voltage Rating | 100V |
| Lock | Inner lock (Secure lock) |
| Mating assist | Keying |
| Mating direction | Side entry |
| Others | Halogen-free |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Standard | USCAR, LV214 |
| Sub category | Wire-to-Board |
