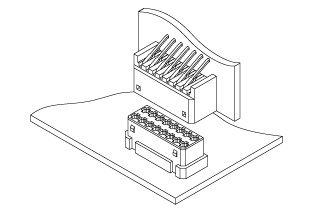

Product Photo

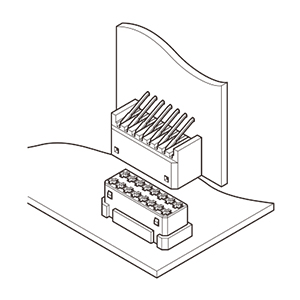

Schematic
Series Description
This 1.25 mm pitch dual-in-line, board-to-board connector. Double-sided, high-pressure contacts and a housing locking feature provide reliable connections.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.25mm |
| Current Rating | 1 A |
| Voltage Rating | 50V |
| Connecting style | Vertical mounting, Parallel mounting |
| Lock | Friction lock |
| PC board mounting | DIP (Through-hole) |
| Qualitative features | Small and space saving |
| Standard | UL, CSA |
