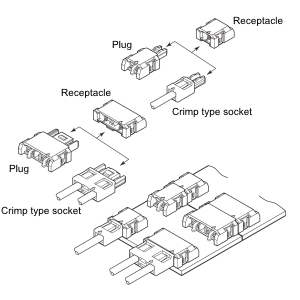

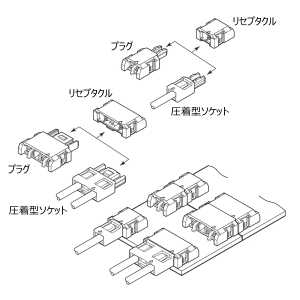

Schematic
Series Description
Considering about luminescence property of LED device, this LEB connector is designed as low profile type connector (height: 2.7 mm) for LED lighting, and achieves the space saving. The horizontal connection between PCBs enables and the mechanism of absorbing the PCB misalignment has been installed considering the parallel use for the connector. Fork type contact that has a high contact pressure (receptacle side) and enough mating stroke provide the stable contact performance even if the PCB expands and contracts due to heat.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 4mm |
| Current Rating | 3 A |
| Voltage Rating | 300V |
| Application | LED lighting |
| Connecting style | Horizontal mounting |
| Mating assist | Absorbing PC board misalignment type |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Standard | UL, CSA |
