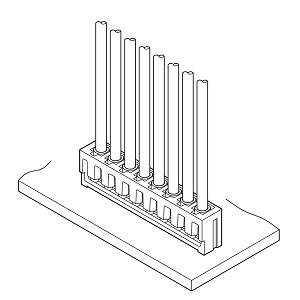

Schematic
Series Description
A dimension of 2.0 mm pitch, 4.0 mm mounting height and 2.9 mm depth. This board-in type connector will enhance the mounting density of the PC board even further as well as improve rationalization and reduce the total cost of production. This product will be suitable for the internal connector of low profile equipment, such as audio equipment (including car audio) and the STB.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 2 A (AWG #24) |
| Voltage Rating | 250V |
| Qualitative features | Low profile, Small and space saving |
| Standard | UL |
| Wire drawer | Top |
