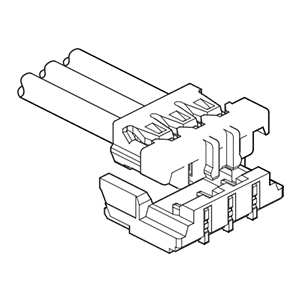

Schematic
Series Description
This is a 1.3 mm pitch, crimp style connector for wire-to-board connections. It features a compact, low profile design with a depth of 4.3 mm and a mounting height of 1.9 mm.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.3mm |
| Current Rating | 1 A (3rd circuit of 5 circuits,AWG #26) 3 A (Other circuits,AWG #26) |
| Voltage Rating | 30V |
| Lock | Friction lock |
| Mating direction | Top entry |
| PC board mounting | SMT |
| Qualitative features | Low profile, Small and space saving |
| Standard | UL |
| Wire drawer | Side |
