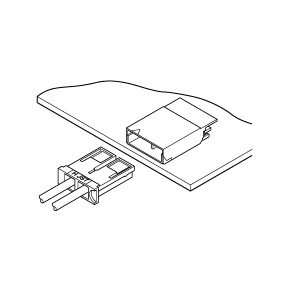

Schematic
Series Description
This is wire-to-board connector for LCD backlight power supply. The board occupied area is smaller than our BHS connector designed for the same purpose, and the mounting height is 13% lower than the BHS, achieving 2.8 mm.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2.3mm |
| Current Rating | 1 A (AWG #24) |
| Voltage Rating | 1400V |
| Application | LCD backlight (CCFL) power supply |
| Lock | Friction lock |
| Mating direction | Side entry |
| PC board mounting | SMT |
| Qualitative features | Low profile, Small and space saving |
| Standard | UL, CSA |
