All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> BNI connector

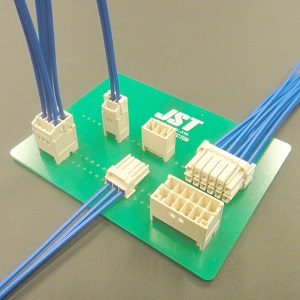

Product Photo

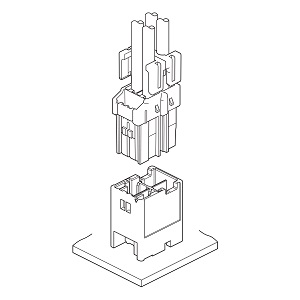

Schematic
Series Description
This is a 3.3 mm pitch wire-to-board connector with a mechanism to prevent incomplete mating.
Three different key patterns per number of circuits in the same model are provided to prevent incorrect mating when multiple pieces of connector are used in close proximity.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 3.3mm |
| Current Rating | 4 A (AWG #20) |
| Voltage Rating | 300V |
| Lock | Inner lock (Secure lock), Center lock (Secure lock), Inertia lock |
| Mating assist | Keying |
| Mating direction | Top entry |
| Others | Suitable for potting process |
| PC board mounting | DIP (Through-hole) |
| Retainer | Retainer |
| Standard | UL, CSA |
