All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> GHD connector (Tin-plated)

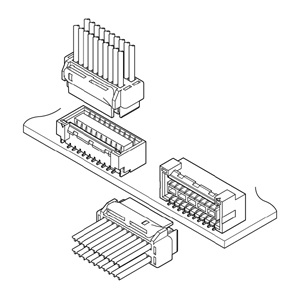

Product Photo
Schematic
Series Description
In order to correspond to the various high-density PC board designing, this GHD connector is designed as 1.25 mm pitch double row type connector.
Provide a full lineup of 10 to 40 circuits for top and side entry types.
Its operability is very well, in spite of the small size with tin-plated.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.25mm |
| Current Rating | 1.25 A (AWG #26) 1 A (AWG #28) 0.8 A (AWG #30) |
| Voltage Rating | 50V |
| Array (Insertion part) | Dual-row |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry, Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving |
