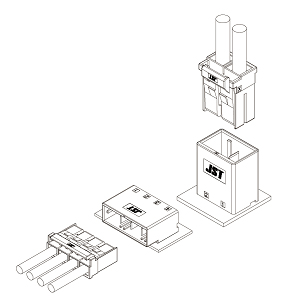

Product Photo
Schematic
Series Description
Small type connector for large current. This connector corresponds the rated current of 35 A at 2 circuits and is board-to-wire connector.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 8.8mm |
| Current Rating | 35 A (2 circuits,AWG #10) |
| Voltage Rating | 600V |
| Lock | Inner lock (Secure lock), Center lock (Secure lock) |
| Mating assist | Keying |
| Mating direction | Top entry, Side entry |
| PC board mounting | DIP (Through-hole) |
| Qualitative features | Small and space saving |
| Standard | UL |
