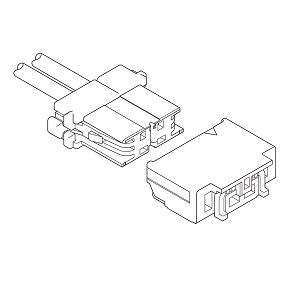

Schematic
Series Description
Considering that the connector does not affect the luminescence angle of LED chip, this low profile type connector (height: 3.0 mm) is designed for connection to LED lamp and realized space saving. A secure locking mechanism is arranged to this connector in order to consider the handling of wire in actual use, although this is a low profile.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.8mm |
| Current Rating | 3 A |
| Voltage Rating | 300V |
| Application | LED lighting |
| Lock | Inner lock (Secure lock), Side lock (Secure lock) |
| Mating direction | Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Standard | UL, CSA |
