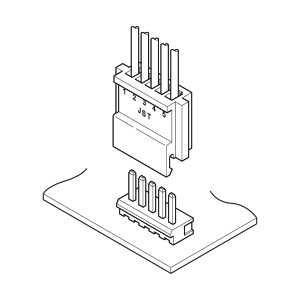

Schematic
Series Description
This is a 2.5 mm pitch connector for connecting PC boards and wires, and consists of a contact, housing and header. There are three types of Header: top, side and bottom entry types, which allow wires to be drawn up, down, or parallel to the PC board by combining them.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2.5mm |
| Current Rating | 3 A (AWG #22) |
| Voltage Rating | 250V |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry, Bottom entry |
| PC board mounting | DIP (Through-hole) |
| Standard | UL, CSA, TÜV |
