Series Description

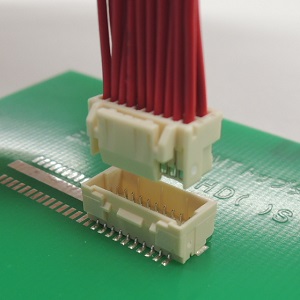

This is a board-to-wire connector with secure locking specification, which achieved excellent workability and withstanding external force. Realize industry-leading space-saving, 1.0 mm pitch dual-row, and support a high densification of equipment.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
Pitch | 1mm |
Current Rating | 1 A (AWG #28) |
Voltage Rating | 50V |
Array (Insertion part) | Dual-row |
Lock | Outer lock (Secure lock), Center lock (Secure lock) |

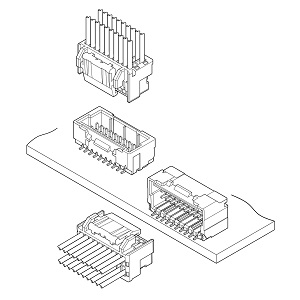

Mating direction | Top entry, Side entry |
PC board mounting | SMT |
Qualitative features | Small and space saving |
