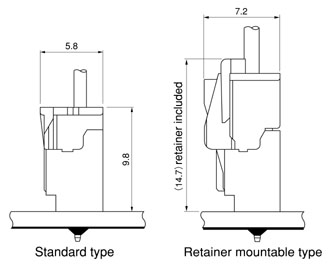

Schematic
Series Description
This is a crimp type board-to-wire connector that is the core one of 2.0 mm pitch PA family connectors with secure locking device.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 3 A (AWG #22) |
| Voltage Rating | 250V (標準タイプ) 100V (リテーナ対応タイプ) |
| Connection variations (Compatibility | Wire-to-wire type available |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry, Side entry, Bottom entry |
| PC board mounting | DIP (Through-hole), SMT |
| Retainer | Retainer |
| Standard | UL |
