All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> PAD connector

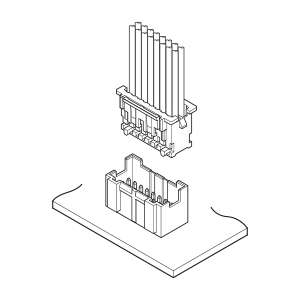

Product Photo
Schematic
Series Description
This is a 2.0 mm pitch wire-to-board connector with dual-row structure and secure locking mechanism.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 3 A (AWG #22) |
| Voltage Rating | 250V |
| Array (Insertion part) | Dual-row |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry, Side entry |
| PC board mounting | DIP (Through-hole) |
| Standard | UL, TÜV |
