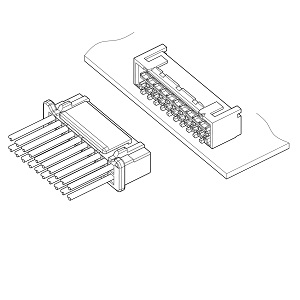

Product Photo
Schematic
Series Description
・Secure lock mechanism ・Sucking area on header
・High reliability contact ・Side entry dual-row type
・Applicator is interchangeable with those of the PHD connector contact.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 3 A (AWG #22) |
| Voltage Rating | 100V |
| Array (Insertion part) | Dual-row |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Side entry |
| PC board mounting | SMT |
