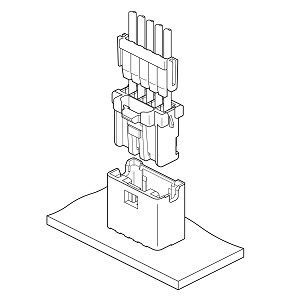

Schematic
Series Description
This is a 2.0 mm pitch wire-to-board connector with a mechanism to prevent incomplete mating.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 3 A (AWG #22) |
| Voltage Rating | 100V |
| Connection variations (Compatibility | Wire-to-wire type available |
| Lock | Inner lock (Secure lock), Center lock (Secure lock), Inertia lock |
| Mating direction | Top entry |
| PC board mounting | DIP (Through-hole) |
| Qualitative features | Low profile, Small and space saving |
| Retainer | Retainer |
| Standard | UL |
