All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> SFG connector
Product Photo

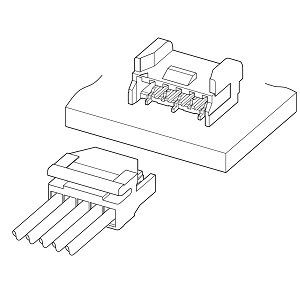

Schematic
Series Description
This SFG connector is a wire-to-board connector compatible with small space.
It is used for power supply of LED backlight in Liquid Crystal Display Television set.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.1mm |
| Current Rating | 1 A (AWG #28) |
| Voltage Rating | 200V |
| Application | LED lighting |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Side entry |
| Others | Halogen-free |
| PC board mounting | SMT |
| Qualitative features | Small and space saving |
| Standard | UL |
