Series Description

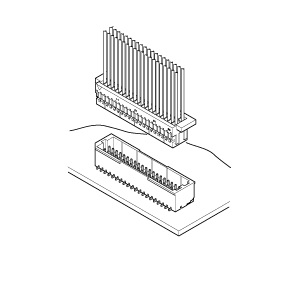

The SHD connector is compact with a mounting height of 6.3 mm for top entry type and 5.5 mm for side entry type, and a width of 5.0 mm for top entry type and 5.1 mm for side entry type.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1mm |
| Current Rating | 1 A (AWG #28) |
| Voltage Rating | 50V |
| Array (Insertion part) | Dual-row |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Standard | UL, CSA |
