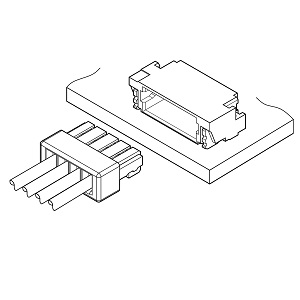

Schematic
Series Description
This SUH connector is developed for crimping type SUR connector that has been designed for 0.8 mm pitch wire-to-board insulation displacement connector. This connector adopted the first crimping method in a minimum 0.8 mm pitch of the wire-to-board type connector. Housing lance method provides the good workability and a constriction contact method provides the excellent contact reliability.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 0.8mm |
| Current Rating | 1 A |
| Voltage Rating | 30V |
| Connection variations (Compatibility | Compatible IDC connector available |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving |
| Standard | UL, CSA |
