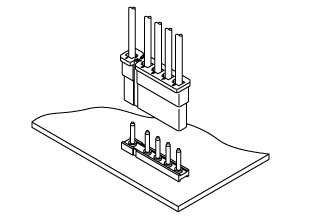

Product Photo

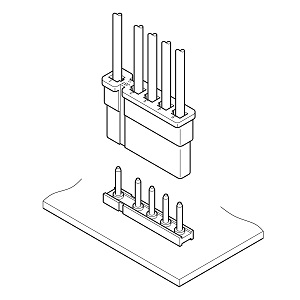

Schematic
Series Description
The V connector can have from two to six circuits. A single contact position is provided 7.5 mm away from the adjacent position, while the pitch of other positions is 5.0 mm. This prevents reverse connection of the receptacle and header.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 5mm |
| Current Rating | 5 A (AWG #20) |
| Voltage Rating | 250V |
| Mating direction | Top entry |
| PC board mounting | DIP (Through-hole) |
| Standard | UL, CSA, TÜV |
