All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> VA connector
Product Photo

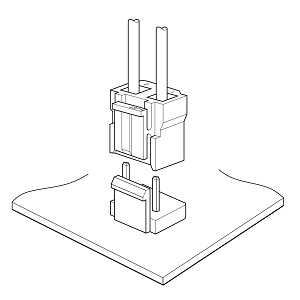

Schematic
Series Description
This 7.92 mm pitch large current carrying capacity connector is used with primary power supply circuits and various other circuits requiring large currents. It features an anti-misinsertion construction and a reliable locking mechanism to ensure maximum safety.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 7.92mm |
| Current Rating | 7 A (AWG #18) |
| Voltage Rating | 250V |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry, Side entry |
| PC board mounting | DIP (Through-hole) |
| Standard | UL, CSA, TÜV |
