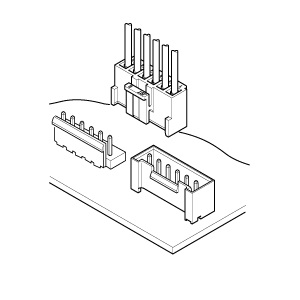

Schematic
Series Description
This small, field-proven connector for printed circuit boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 3.96mm |
| Current Rating | 10 A (AWG #16) |
| Voltage Rating | 250V |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry, Side entry |
| PC board mounting | DIP (Through-hole) |
| Qualitative features | Small and space saving |
| Retainer | Retainer |
| Standard | UL, CSA, TÜV |
