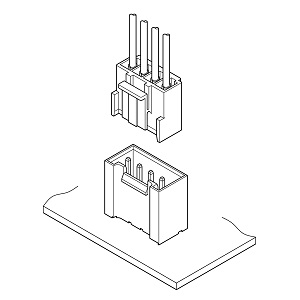

Schematic
Series Description
This is VH connector high box type, with 21.3 mm mounting height (single circuit: 18.6 mm) and with 9.2 mm thickness (single circuit: 8 mm). This connector exhibits the stable electric connection to the condition such as the vibration, the prying, the micro-current and micro-voltage circuit.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 3.96mm |
| Current Rating | 7 A (AWG #18) 10 A (1 circuit,AWG #16) |
| Voltage Rating | 250V |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry |
| Others | Suitable for potting process |
| PC board mounting | DIP (Through-hole) |
| Retainer | Retainer |
| Standard | UL, CSA, TÜV |
