All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> XL connector (Wire-to-Board)
Product Photo

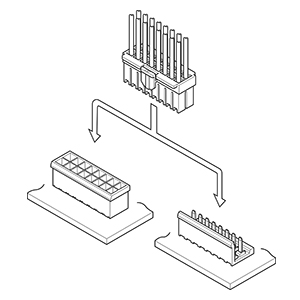

Schematic
Series Description
This highly reliable wire-to-board connector was developed based on the proven track record of the VH connector, which is widely used in numerous electronic and electrical equipment such as home appliances, vending machines and office machines.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 5mm |
| Current Rating | 10 A (2 circuits,AWG #16) |
| Voltage Rating | 150V |
| Connection variations (Compatibility | Wire-to-wire type available, Compatible crimp connector available |
| Lock | Outer lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry, Side entry |
| PC board mounting | DIP (Through-hole) |
| Standard | UL, CSA, TÜV |
