All Products >> Product Category >> Crimp Style Connectors (Wire-to-Board type) >Product Series >> XM connector (High box type)
Product Photo

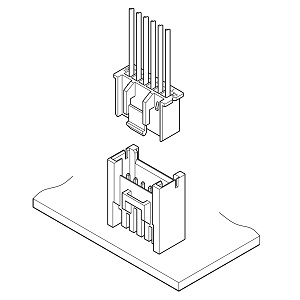

Schematic
Series Description
This is XM connector high box type, with 20.0 mm mounting height and with 8.9 mm thickness. This connector exhibits the stable electric connection to the condition such as the vibration, the prying, the micro-current and micro-voltage circuit.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2.5mm |
| Current Rating | 3 A (AWG #22,AWG #20) |
| Voltage Rating | 250V |
| Connection variations (Compatibility | Wire-to-wire type available |
| Lock | Inner lock (Secure lock), Center lock (Secure lock) |
| Mating direction | Top entry |
| Others | Suitable for potting process |
| PC board mounting | DIP (Through-hole) |
| Retainer | Retainer |
