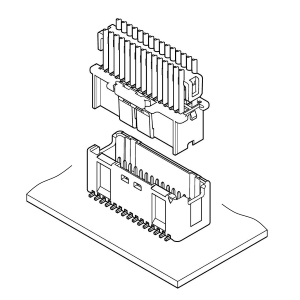

Schematic
Series Description
This connector is a 1.5 mm pitch, dual-row SMT mountable connector with secure locking mechanism for high-density board designs and is compatible with the potting process.
Excellent mating feeling ensures reliable mating operation.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.5mm |
| Current Rating | 2 A (AWG #24) |
| Voltage Rating | 100V |
| Array (Insertion part) | Dual-row |
| Connection variations (Compatibility | Wire-to-wire type available |
| Lock | Inner lock (Secure lock), Center lock (Secure lock) |
| Mating assist | Keying |
| Mating direction | Top entry |
| Others | Suitable for potting process |
| PC board mounting | SMT |
| Retainer | Retainer |
| Standard | UL |
