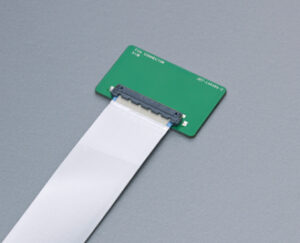

Product Photo
Schematic
Series Description
This is 0.5 mm pitch connector for FPC which has the exclusive GND contact and enables high-speed transmission with connecting to the impedance controlled FPC.
Adopting the auto lock mechanism that makes lock by performing the one action of snap-in-work, the workability improvement is realized.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 0.5mm |
| Current Rating | 0.3 A |
| Voltage Rating | 50V |
| Applicable FPC/ FFC | FFC, FPC with cutout |
| Contact surface side | Bottom contact (Reverse) |
| FPC/ FFC thickness | 0.33 mm |
| Lock | Auto lock |
| Mating direction | Side entry type |
| PC board mounting | SMT |
| Qualitative features | Low profile |
| Transmission/Electromagnetic characteristics | High-speed transmission, EMI |
| ZIF/Non-ZIF | Non-ZIF |
