Series Description

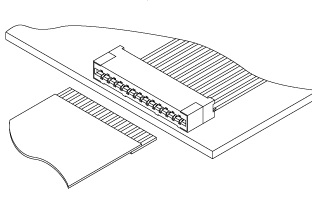

The FFS series connectors are designed for surface mount technology (SMT) and to meet the demand for high-density packaging. They are miniature connectors with a height of only 2.8 mm. Their high contact pressure eliminates fretting corrosion and ensures secure connections. Low insertion force make connection easy.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
Pitch | 1.25mm |
Current Rating | 0.5 A |
Voltage Rating | 50V |
Applicable FPC/ FFC | FFC |
Contact surface side | Both sides contact |
FPC/ FFC thickness | 0.3 mm |
Mating direction | Side entry type |
PC board mounting | SMT |
Qualitative features | Small and space saving, Low profile |
Standard | UL, CSA |
ZIF/Non-ZIF | Non-ZIF |
