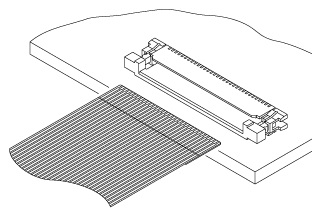

Product Photo

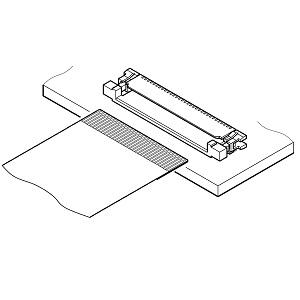

Schematic
Series Description
With a fine pitch of 0.5 mm, this space-saving, compact FPC connector, with its ZIF (Zero Insertion Force) mechanism, effectively prolongs the number of mating cycles, thereby extending the life of the connector. Both normal and reverse connection types are available.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 0.5mm |
| Current Rating | 0.5 A |
| Voltage Rating | 50V |
| Applicable FPC/ FFC | FPC |
| Contact surface side | Upper contact (Normal), Bottom contact (Reverse) |
| FPC/ FFC thickness | 0.3 mm |
| Lock | Slider lock |
| Mating direction | Side entry type |
| PC board mounting | SMT |
| Qualitative features | Low profile, Small and space saving |
| Standard | UL, CSA |
| ZIF/Non-ZIF | ZIF |
