All Products >> Product Category >> FFC/FPC Connectors >Product Series >> FXR connector
Product Photo

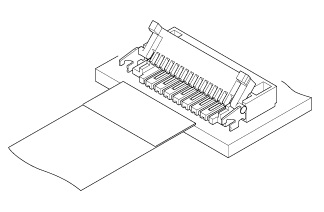

Schematic
Series Description
This FXR connector is a ZIF type connector for FPC with only 1.0 mm height.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 0.3mm |
| Current Rating | 0.2 A |
| Voltage Rating | 50V |
| Applicable FPC/ FFC | FPC |
| Contact surface side | Bottom contact (Reverse) |
| FPC/ FFC thickness | 0.2 mm |
| Lock | Flip lock (front type) |
| Mating direction | Side entry type |
| PC board mounting | SMT |
| Qualitative features | Low profile, Small and space saving |
| Standard | UL |
| ZIF/Non-ZIF | ZIF |
