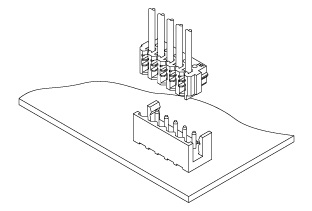

Product Photo

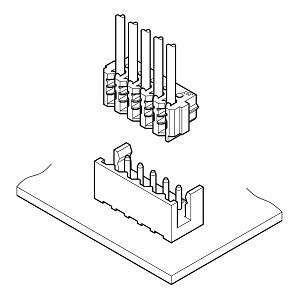

Schematic
Series Description
With a mounting height of 5.0 mm and a thickness of 4.8 mm (top entry type), it is the industry-leading space-saving 2.0 mm pitch mating type wire-to-board connector.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 1 A (AWG #26) |
| Voltage Rating | 100V |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| PC board mounting | DIP (Through-hole) |
| Qualitative features | Low profile, Small and space saving |
| Standard | UL, CSA |
