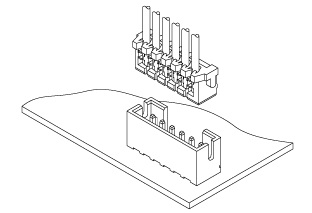

Schematic
Series Description
*Folded beam double-leaf contact construction
*Twin U-slot ID section
*The same shrouded header can be used for the CR/KRD insulation displacement connectors or the PH crimp style connector.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 1 A (AWG #26) |
| Voltage Rating | 100V |
| Connection variations (Compatibility | Compatible crimp connector available |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| PC board mounting | DIP (Through-hole), SMT |
| Qualitative features | Low profile |
| Standard | UL, CSA |
