Product Photo

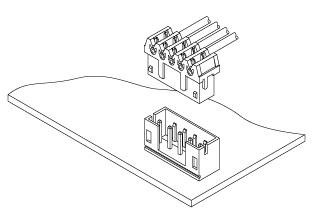

Schematic
Series Description
This 2.0 mm pitch insulation displacement connector is another version of the NRD connector for printed circuit boards. The KRD connector allows daisy chaining and is very useful in simplifying connection systems in electronic equipment.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 1 A (AWG #26) |
| Voltage Rating | 100V |
| Connection variations (Compatibility | Compatible crimp connector available |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| Others | Daisy chain |
| PC board mounting | DIP (Through-hole), SMT |
| Qualitative features | Low profile |
| Standard | UL, CSA |
