All Products >> Product Category >> Insulation Displacement Connectors (Wire-to-Board type) >Product Series >> NR connector

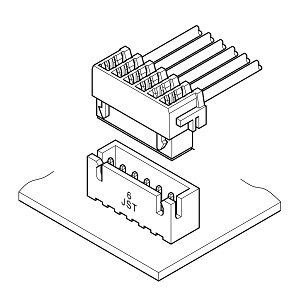

Product Photo

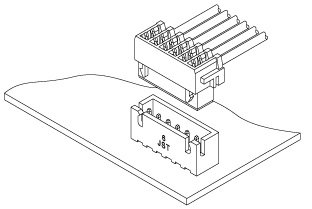

Schematic
Series Description
The NR connector is our first insulation displacement connector designed for printed circuit boards and has a justified reputation for reliability. The receptacle accepts both discrete wires and ribbon cables.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2.5mm |
| Current Rating | 2 A (AWG #24) |
| Voltage Rating | 250V |
| Connection variations (Compatibility | Compatible crimp connector available |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| Others | Radial taping |
| PC board mounting | DIP (Through-hole) |
| Standard | UL, CSA |
| Wire drawer | Side |
Product Video
