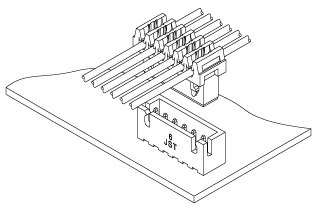

Product Photo

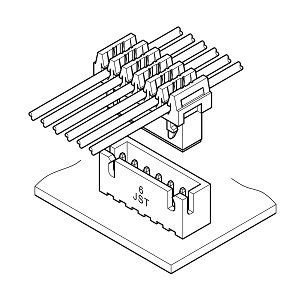

Schematic
Series Description
This 2.5 mm pitch insulation displacement connector is another version of the NR connector for printed circuit boards. The NRD connector allows daisy chaining and is very useful in simplifying connection systems in electronic equipment.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2.5mm |
| Current Rating | 2 A (AWG #24) |
| Voltage Rating | 250V |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| Others | Daisy chain, Radial taping |
| PC board mounting | DIP (Through-hole) |
| Standard | UL, CSA |
