All Products >> Product Category >> Insulation Displacement Connectors (Wire-to-Board type) >Product Series >> SSR connector

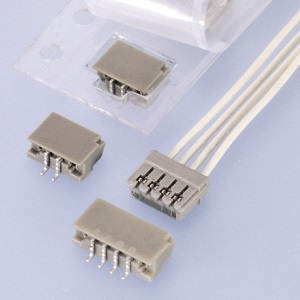

Product Photo

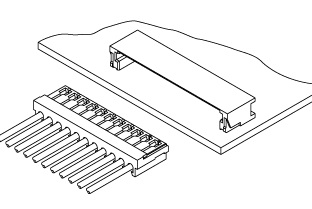

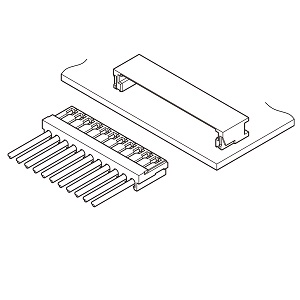

Schematic
Series Description
This connector is for wire-to-board connection with 1.0 mm pitch insulation displacement connection, which achieved miniaturization with mounting height 2.0 mm and depth 4.5 mm. The twin U-slots and the 3-point grip construction provides excellent connection performance.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1mm |
| Current Rating | 0.5 A |
| Voltage Rating | 50V |
| Lock | Friction lock |
| Mating direction | Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Standard | UL, CSA |
