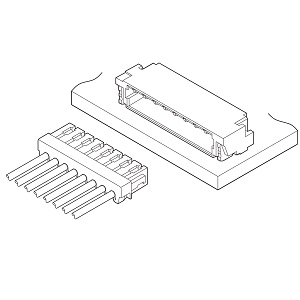

Product Photo
Schematic
Series Description
The worlds first 0.8 mm pitch wire-to-board insulation displacement connector. Side entry type is only 3.9 mm depth and 1.75 mm height after mounting on the PC board, and top entry type is only 2.2 mm depth and 3.9 mm height. Compared to the conventional 1.0 mm pitch SSR connector, occupation space on the board is reduced by 34% (side entry type).
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 0.8mm |
| Current Rating | 0.5 A (AWG #32) 0.2 A (AWG #36) |
| Voltage Rating | 30V |
| Connection variations (Compatibility | Compatible crimp connector available |
| Lock | Friction lock |
| Mating direction | Top entry, Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Standard | UL, CSA |
