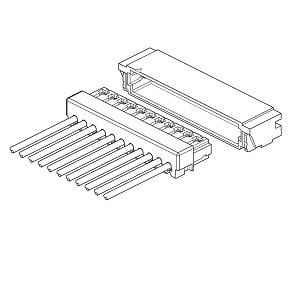

Product Photo

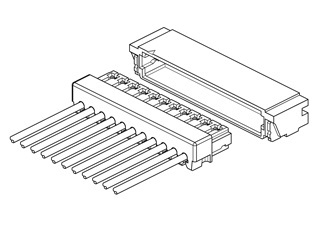

Schematic
Series Description
This is the worlds smallest 0.6 mm pitch ID connector for discrete wires. This Wire to Board miniaturized connector has a mounting height of 1.45 mm and depth of 3.0 mm.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 0.6mm |
| Current Rating | 0.2 A |
| Voltage Rating | 30V |
| Lock | Friction lock |
| Mating direction | Side entry |
| PC board mounting | SMT |
| Qualitative features | Small and space saving, Low profile |
| Standard | UL, CSA |
