All Products >> Product Category >> Interface Connection Connectors >Product Series >> MUF connector

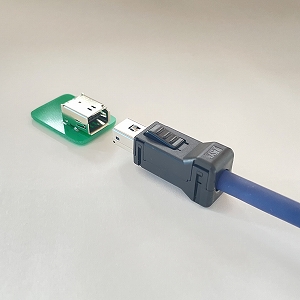

Product Photo

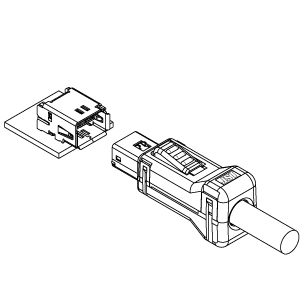

Schematic
Series Description
This connector is the shielded interface connector with locking mechanism.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 0.8mm |
| Current Rating | 1 A |
| Voltage Rating | 30V |
| Mating assist | Keying |
| Mating direction | Side entry |
| PC board mounting | DIP (Through-hole), SMT |
| Qualitative features | Small and space saving |
| Standard | UL |
| Transmission/Electromagnetic characteristics | Shield |
