Series Description

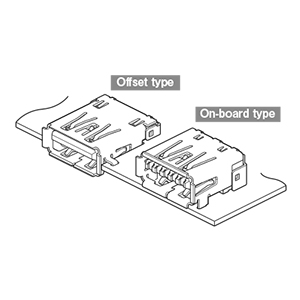

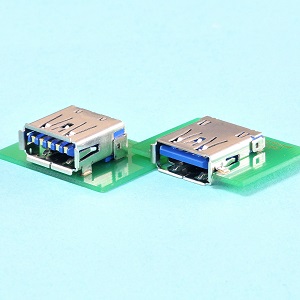

The UB3 series is a Universal Serial Bus (USB) interface Type A connector receptacle that complies with the USB 3.0 standard.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
Pitch |
Current Rating | 1.8 A (VBUS,GND circuits (No.1,No.4)) 0.25 A (Other circuits (No. 2,No.3,No.5 to No.9 )) |
Voltage Rating | 30V |
Mating direction | Side entry |
Others | Halogen-free |
PC board mounting | DIP (Through-hole) |
Standard | UL, USB3.0 Type-A |
