All Products >> Product Category >> Wire-to-Wire Connectors >Product Series >> JWPF connector (Wire-to-Wire)

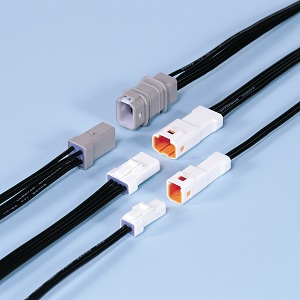

Product Photo

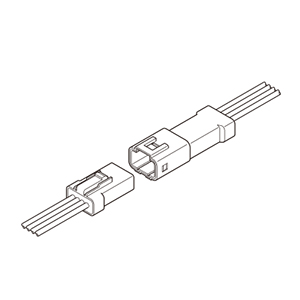

Schematic
Series Description
This JWPF connector can be used for the place of which especially waterproof is required.
This is wire-to-wire connector and has water ingress protection with an IPX7 rating per IEC 60529 (grade 7 per JIS C 0920).
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 3 A (AWG #22) |
| Voltage Rating | 100V |
| Connection variations (Compatibility | Wire-to-board type available |
| Lock | Inner lock (Secure lock), Center lock (Secure lock) |
| Panel mounting | Free-hanging |
| Qualitative features | Small and space saving |
| Standard | UL, TÜV, Grade 7 per JIS C 0920 |
| Waterproof | Waterproof |
| Wiring type | Crimp style |
Product Video
