All Products >> Product Category >> Wire-to-Wire Connectors >Product Series >> RGX connector
Product Photo

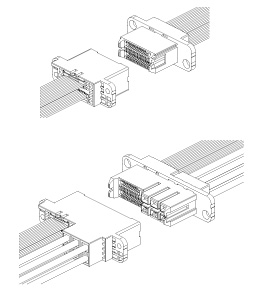

Schematic
Series Description
With an in-unit connection, the RGX series is offered as both a signal type and a hybrid type drawer connector with combined signal and power lines.Misalignment is absorbed between units with exceptional durability against insertion and withdrawal forces.Improvements in the contact structure allows for enhanced contact reliability.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.25mm |
| Current Rating | 15 A (Power line,AWG #14) 1 A (Signal line,AWG #26) |
| Voltage Rating | 250V (電源部) 50V (信号部) |
| Array (Insertion part) | Dual-row |
| Hybrid | Hybrid (Power supply and Signal) |
| Mating assist | Absorbing PC board misalignment type, Drawer connector |
| Panel mounting | Screw fastening |
| Qualitative features | Insertion/extraction durability |
